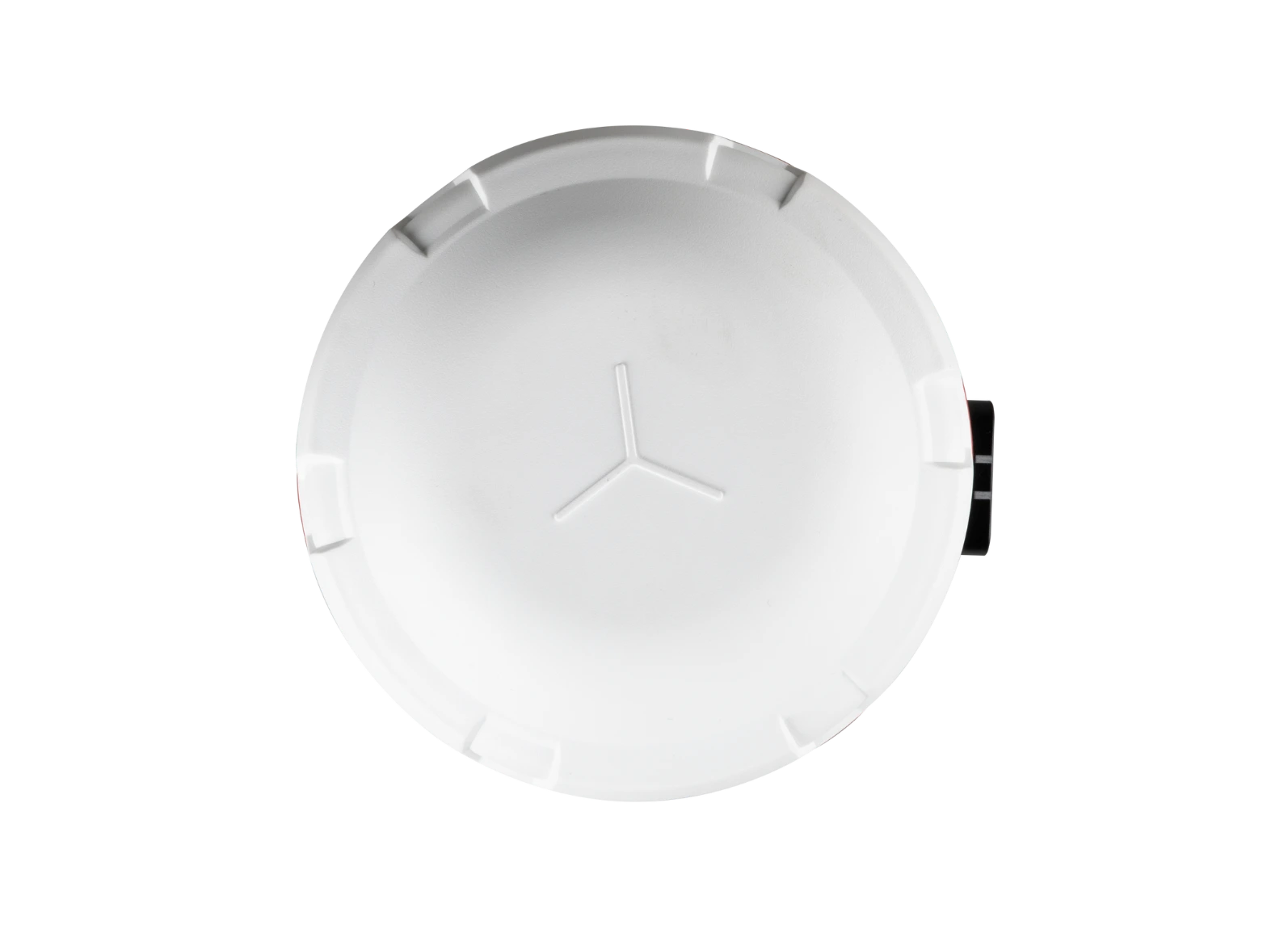

4G/BT communication
IP67 Certified
Full-constellation and muti-frequency
DP-Filter
01. Full-Constellation And Multi-Frequency Tracking
02. Flexible Interface for External Devices
03. Advanced QUANTUMTM Technology
04. DP-filter Smooth Function
05. Support Maximum 20 Hz RTD/RTK
06. Support 4G/Bluetooth
Specifications
GNSS Receiver Specifications
| Receiver Type | GNSS Smart Antenna |
| Signal Received | GPS: L1C/A, L1C, L2P, L2C, L5
BDS: B1I, B2I, B3I, B1C, B2a, B2b GLONASS: G1, G2, G3 Galileo: E1, E5a, E5b, E6c, E5 AltBOC QZSS: L1C/A, L2C, L5,L1C Navic: L5 |
| Channels | 965 |
| Update Rate | 10 Hz standard, 20 Hz optional |
| Timing (1 PPS) Accuracy | 20 ns |
| Cold Start | < 20 s (Adding Acceleration Capture Module) |
| Hot Start | < 10s typical |
Positioning Accuracy
| Single Baseline RTK | 8mm+1ppm Horizontal
15mm+1ppm Vertical |
| DGPS | < 0.4m RMS |
| SBAS | 0.5m RMS Horizontal
0.8m RMS Vertical |
| Standalone | 1.5m 3D RMS |
| Speed accuracy | ≤ 0.02 m/s (PDOP ≤4) |
| Reacquisition Time | < 1s (typical) |
| Signal Capture Sensitivity | -138dBm |
Communications

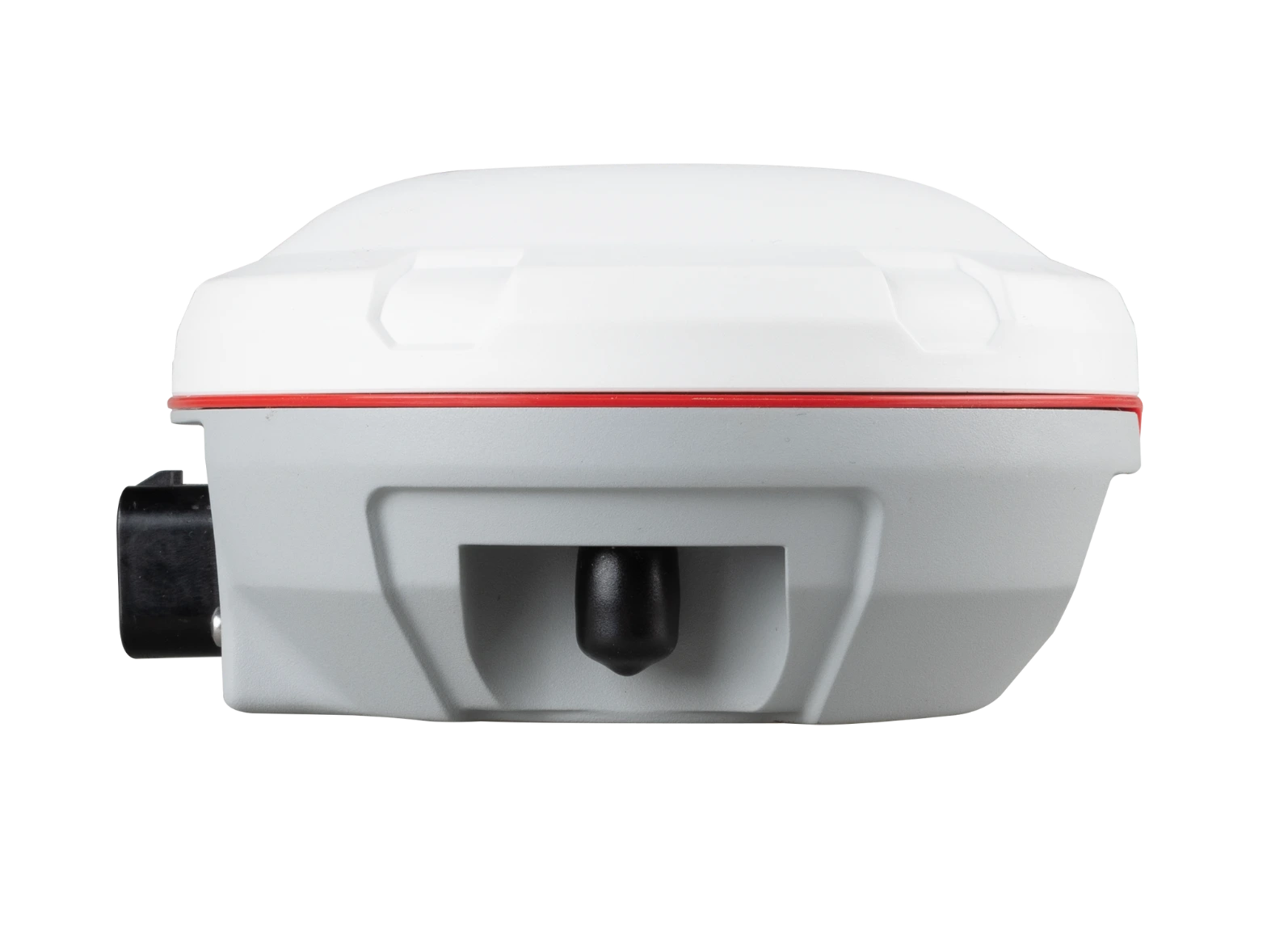

| Power/Data Connector | 14-pin Deutsch (3x full-duplex RS-232, 1x CAN, 1x pps,1xEvent,1xVcc out) |

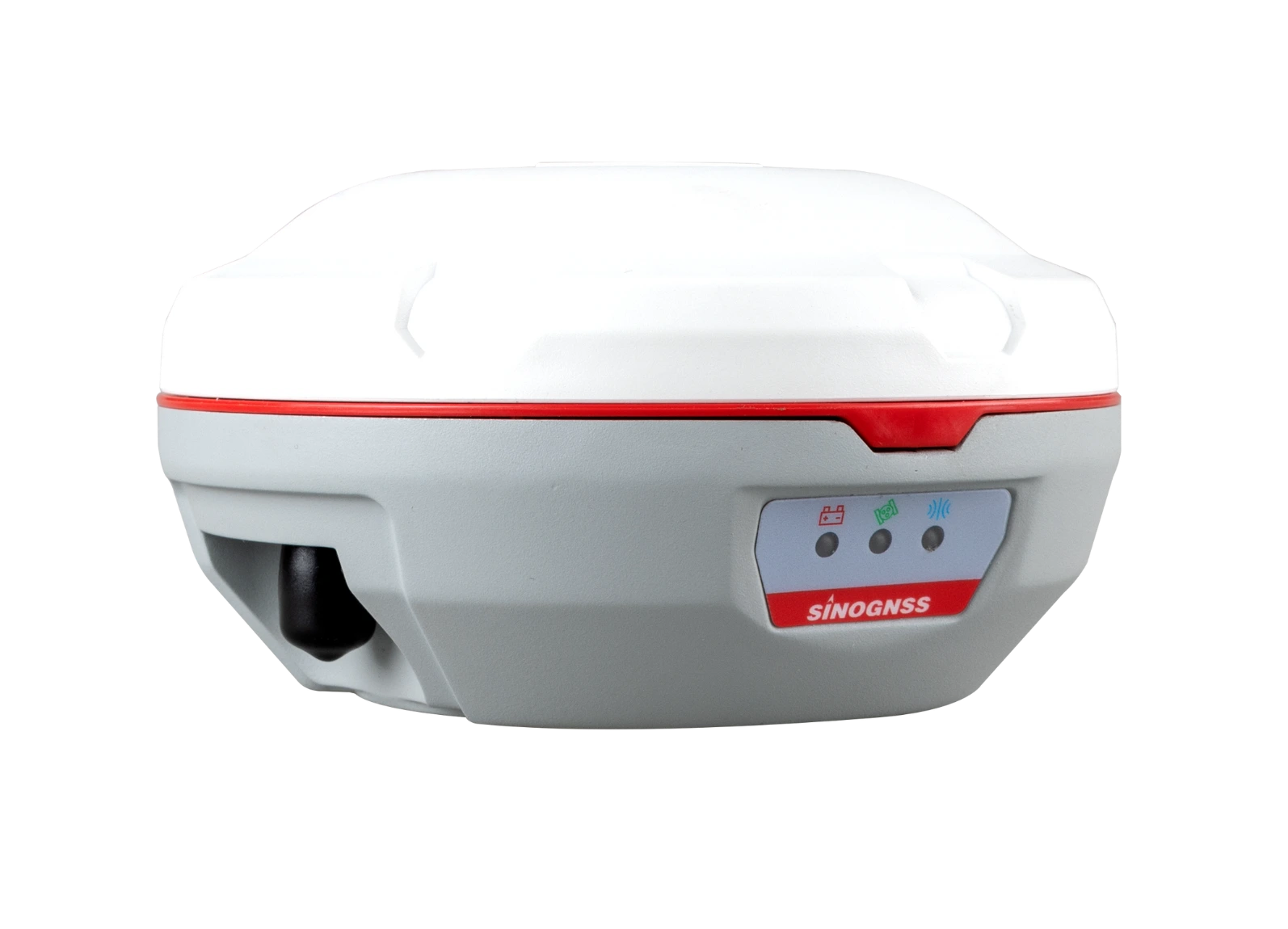

| Status Indications (LED) | Power, SAT, LINK |
| Baud Rates | 4800 – 115200 |
| Bluetooth | Bluetooth 4.0 (Class 2) |
| 4G | FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/ B18/B19/B20/B25/B26/B28TDD: B38/B39/B40/B41WCDMA: B1/B2/B4/B5/B6/B8/B19 – 850/900/1800/1900 MHz |
| Correction I/O Protocol | RTCM2.X, RTCM3.X, CMR, CMR+ |
| Data I/O Protocol | – ASCII: NMEA-0183 GSV, RMC, HDT, VHD, GGA, GSA, ZDA, VTG, GST; PTNL, PJK; PTNL, AVR; PTNL, GGK- ComNav Binary update to 20 Hz |
Power
| Input Voltage | 9-36 VDC |
| Power Consumption | 2.6 W Maximum |
| Current Consumption | ≤1 A Maximum |
| Reverse Polarity Protection | Yes |
Environmental
| Operating Temperature | -40°C to +70°C (-40°F to +158°F) |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) |
| Humidity | 95% non-condensing |
Inertial Measurement Unit (lMU)
| Gyroscope | 3-axis,200 Hz MAX@115200bps |
| Accelerometer | 3-axis,200 Hz MAX@115200bps |
Variants
| Enclosure | IP67 |
| Dimensions | 132 x 132 x 72 (mm) |
| Weight | 750g |
| 4G | GYRO | Datalink | GNSS Module | |
|---|---|---|---|---|
| A100 Lite | ✔ | – | – | K803LITE |
| A100 Pro | ✔ | ✔ | ✔ | K803 |
Documents
SinoGNSS A100 Series Smart Antenna Release Date: 2023.12.26 Version: 1.0
